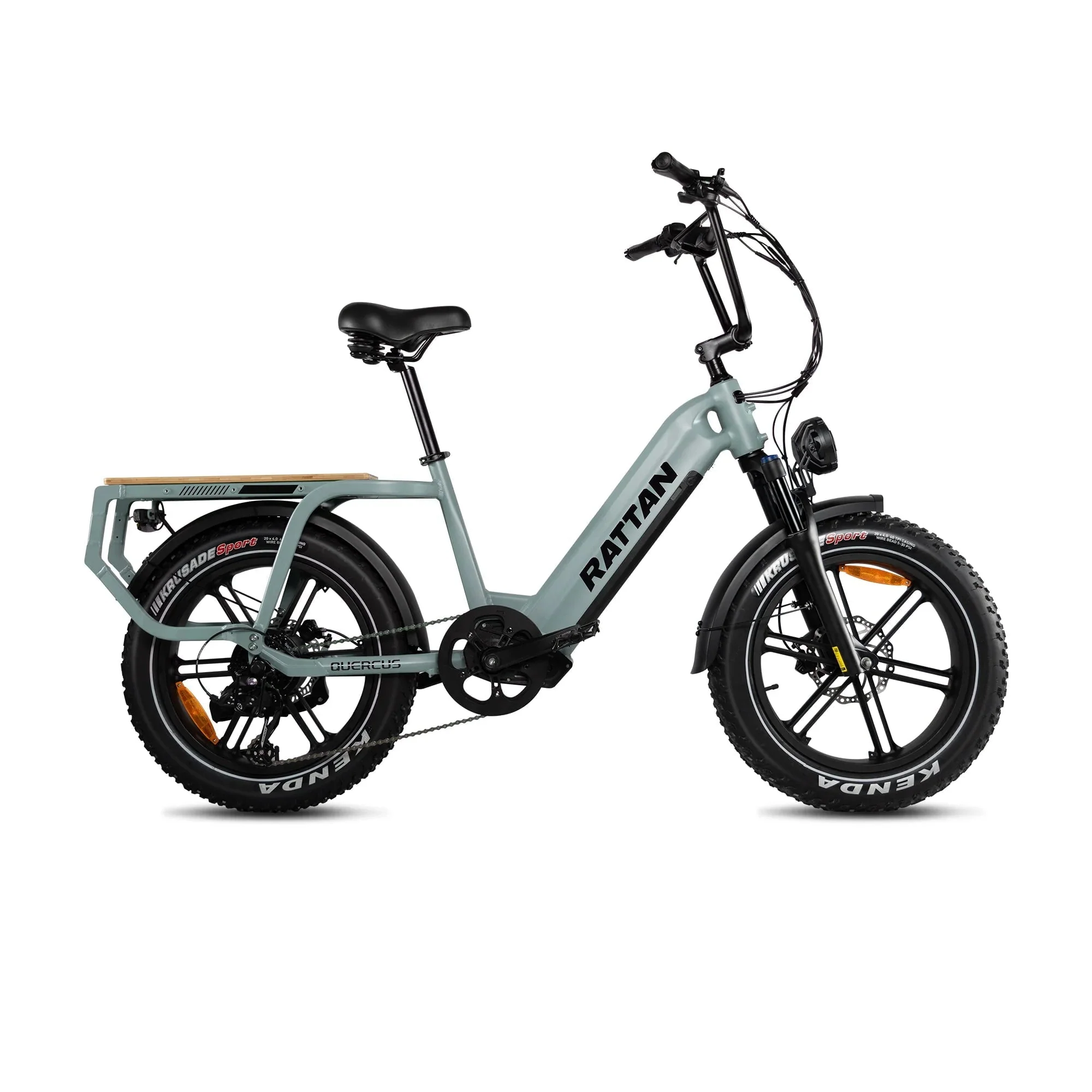

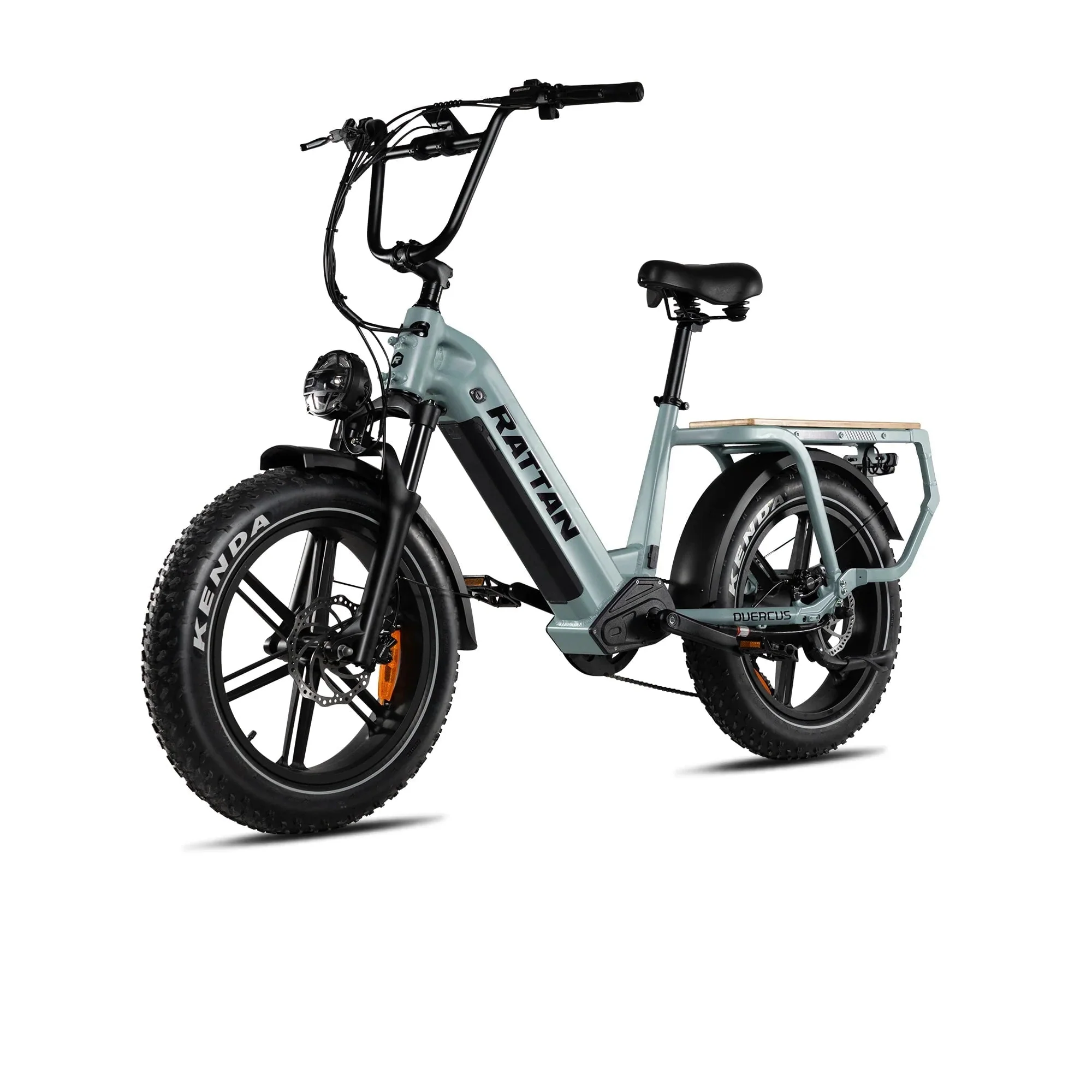

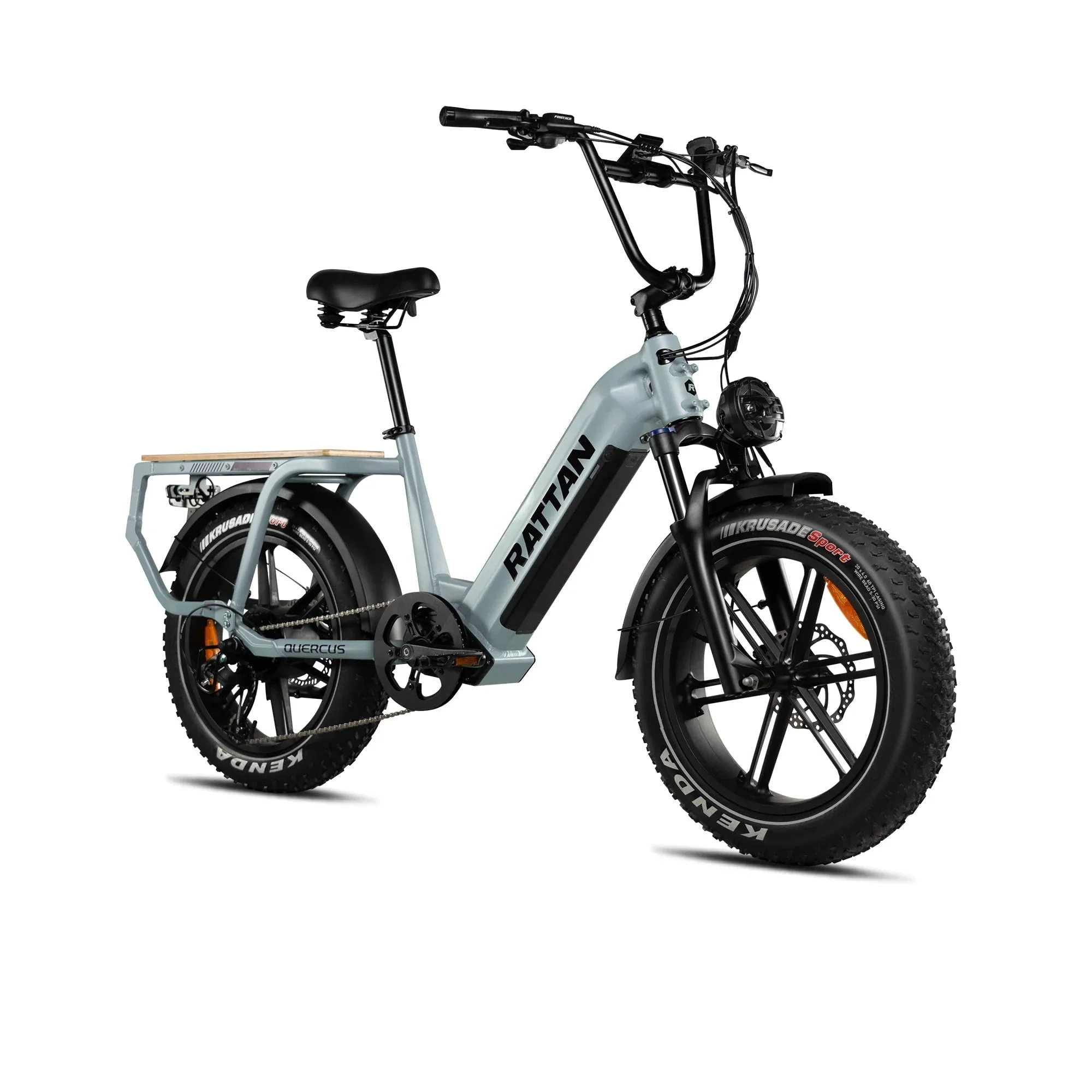

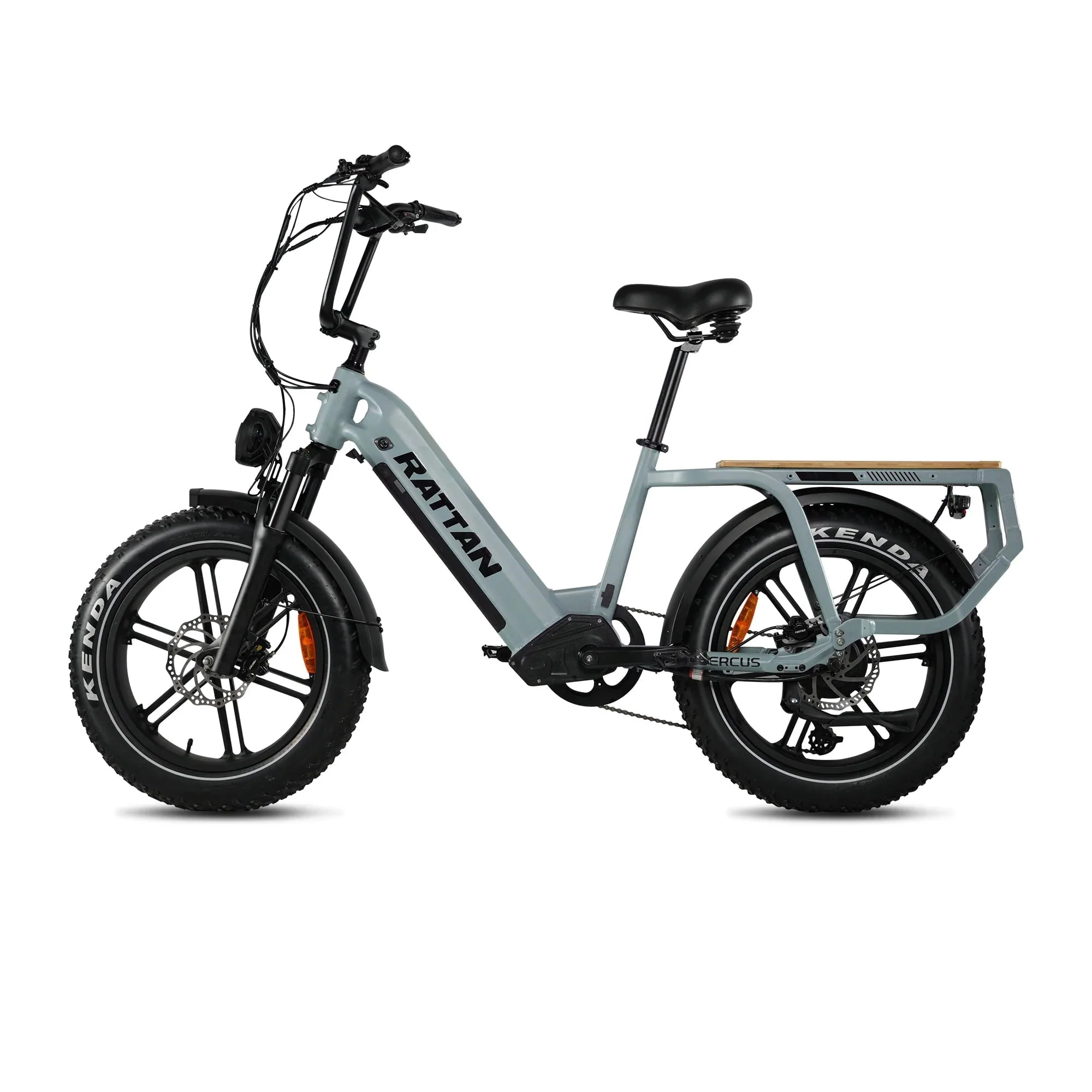

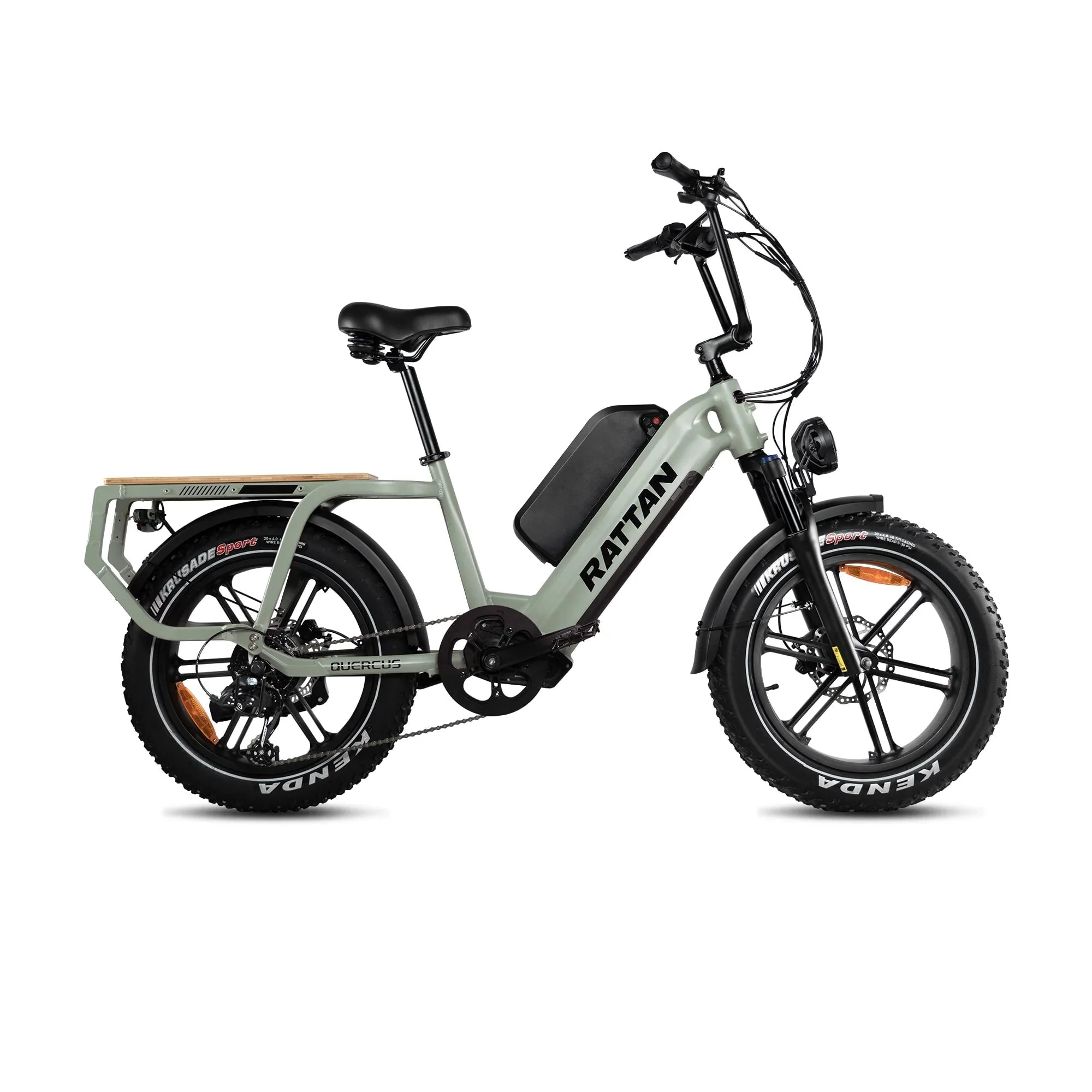

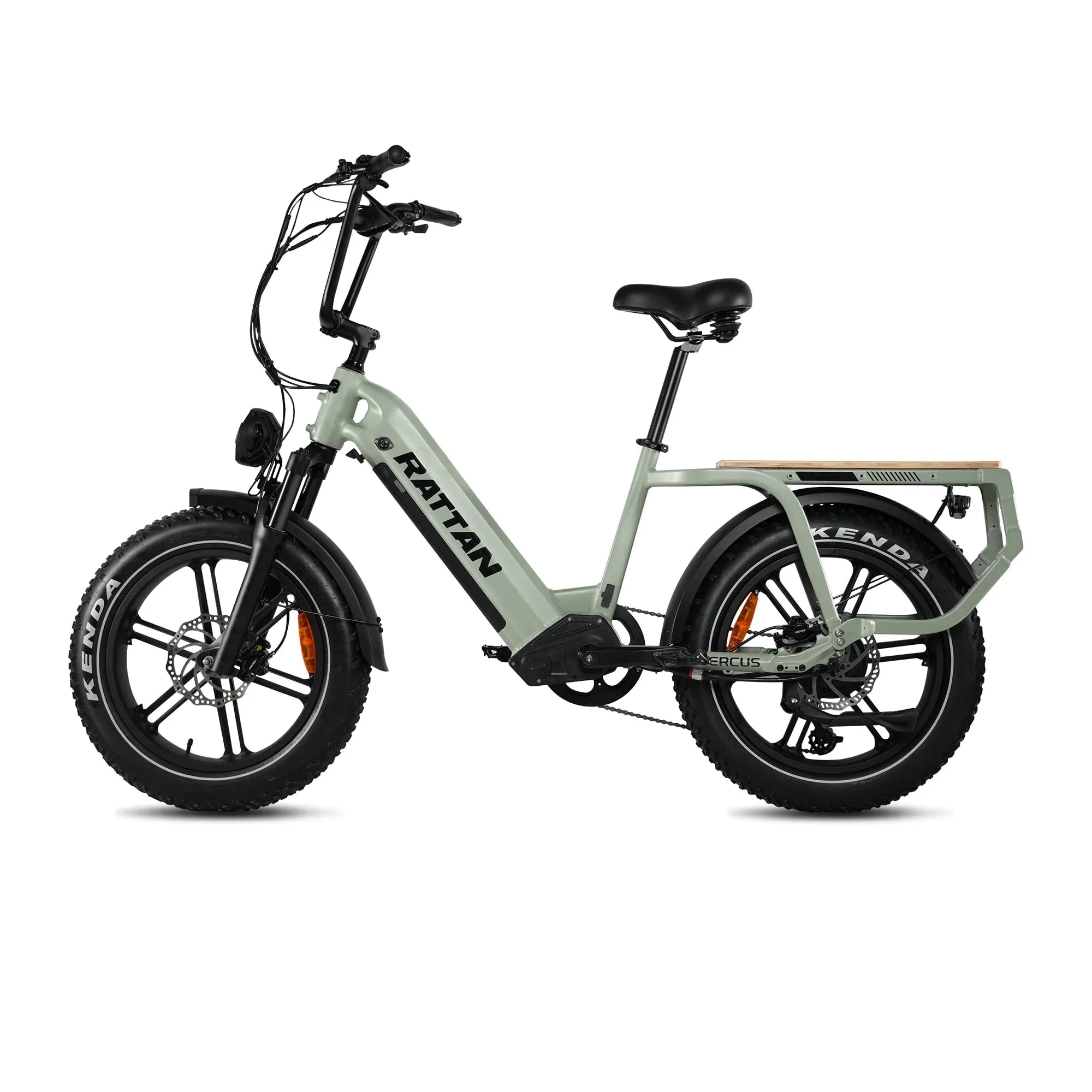

Rattan Quercus: The Ultimate Heavy-Duty Utility eBike

Headline: Unmatched Strength Meets Smart Torque Performance

The Rattan Quercus is built to be a reliable "beast of burden" for urban logistics and outdoor adventures. Its 750W sustained (1500W peak) brushless hub motor delivers a staggering 80NM of torque, enabling a top speed of 30 MPH. What sets it apart is the precision torque sensor, which ensures that the motor's power feels like a natural extension of your own pedaling—eliminating the "jerky" acceleration common in budget eBikes.

Built for the Long Haul

• Exceptional Range: The Quercus supports a dual 20Ah Samsung battery setup, pushing your range over the 100-mile mark on a single charge. Even with the standard single battery, you can expect up to 80 miles of assisted riding.

• Superior Cargo Capability: With a reinforced frame and integrated magnesium alloy wheels, this bike handles a 450 lb payload effortlessly, making it the prime choice for groceries, equipment, or even a second passenger.

• Pro-Grade Safety: Features dual hydraulic disc brakes with a rapid 0.1-second response time and a specialized turn signal system integrated into the rear taillight for maximum visibility in traffic.

• All-Terrain Stability: The 20" x 4.0" Kenda fat tires and adjustable hydraulic suspension fork allow you to transition from smooth pavement to gravel or sand without losing traction or comfort.

• Modern Connectivity: A full-color LCD display with USB charging syncs with a mobile app, providing navigation, vehicle positioning, and customizable power settings at your fingertips.

100% Online Financing Available

Upgrade your commute today without the upfront cost. We offer 100% online financing with instant approval at checkout. Choose your Rattan bike and pay in easy monthly installments!

---

Full Technical Specifications

Category	Detailed Specifications
Motor	750W Sustained / 1500W Peak Shengyi Brushless Hub
Torque	80NM for High-Performance Climbing
Sensor Type	Precision Torque Sensor
Battery	48V 20Ah (Samsung 21700 Cells)
Top Speed	30 MPH
Max Range	Up to 80 Miles (100+ Miles with Dual Battery)
Brakes	Front & Rear 180mm Hydraulic Disc
Tires	20" x 4.0" Kenda Integrated Fat Tires
Payload Capacity	450 lbs
Charging	4.5A Fast Charger (4-5 Hour Charge Time)
Safety	Turn Signals, Automatic Headlight, Brake Light
Weight	82 lbs

---

Frequently Asked Questions

How does the dual battery system work?

The Quercus is designed to hold two separate 20Ah batteries. To use the secondary battery, you simply switch off the main battery and toggle on the secondary one. This effectively doubles your watt-hours, allowing for long-distance trips without needing to stop and find a charger.

Is the 30 MPH speed legal?

The Quercus is a Class 3 eBike, which typically limits speeds to 28 MPH. However, it can reach 30 MPH in certain settings. You can use the LCD settings or the mobile app to adjust speed limits and ensure you are compliant with local regulations for bike paths and streets

Why are magnesium alloy wheels better for cargo?

Unlike traditional spoked wheels, magnesium alloy wheels are cast as a single solid piece. They never require "truing" (straightening spokes) and are significantly more rigid. This is crucial for a cargo bike carrying 450 lbs, as it prevents wheel deformation under heavy weight.

Does it come with the rear rack?

Yes, the Quercus features a heavy-duty integrated rear rack as part of the frame. This rack is designed to be more stable than bolt-on options and often features a wooden aesthetic touch, perfect for mounting baskets, panniers, or a passenger seat.
